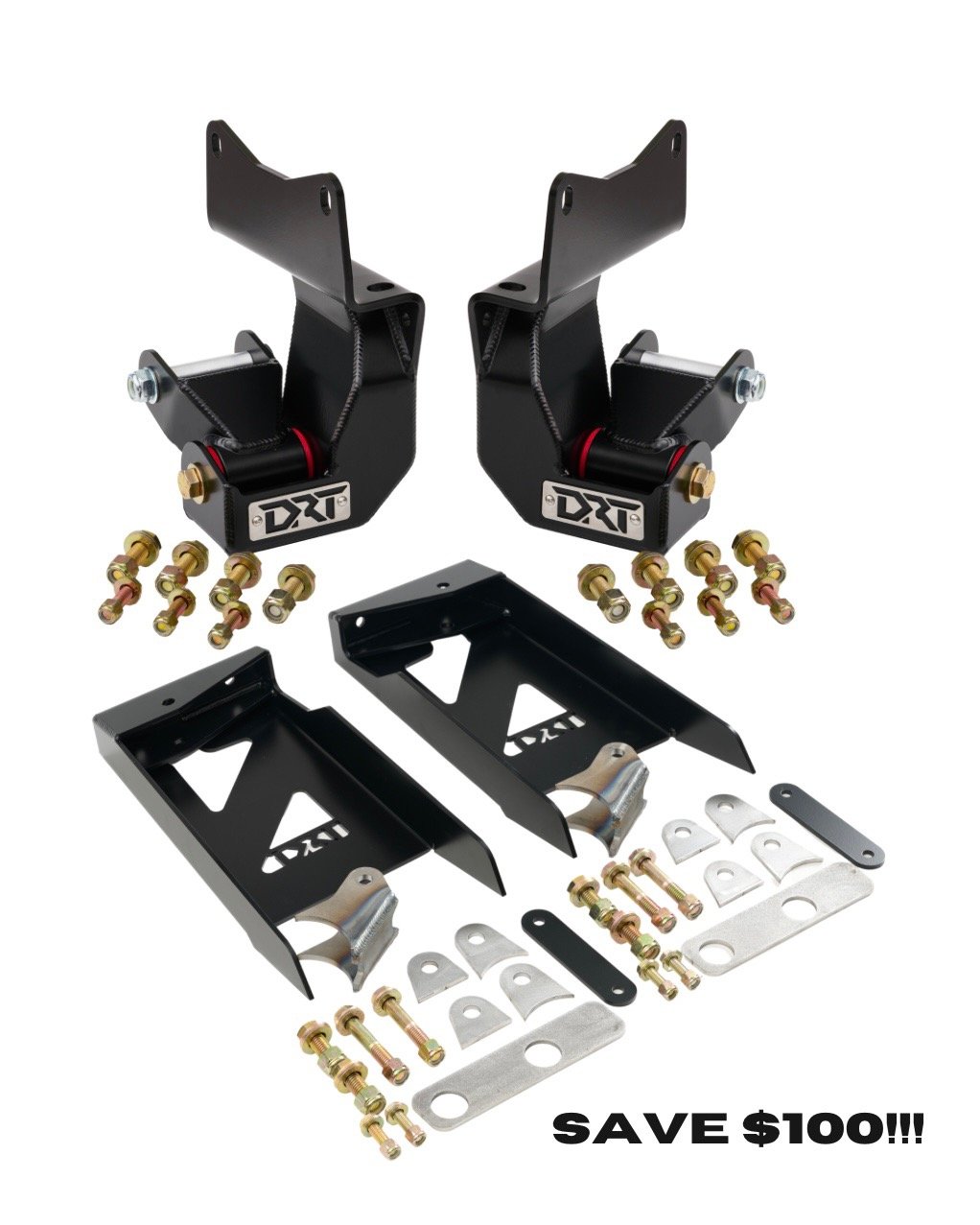

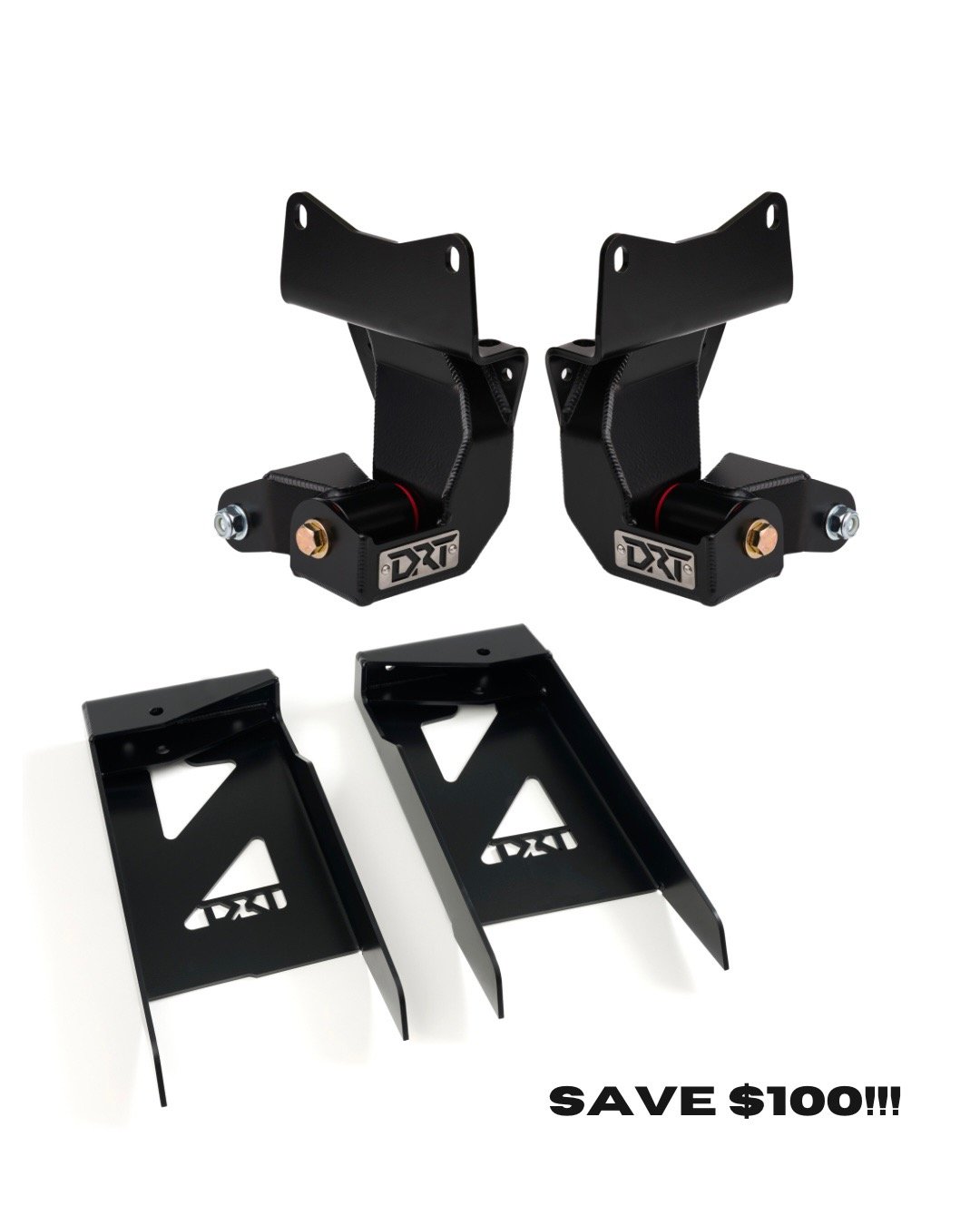

05-23 Tacoma Shackle Hanger + Shock Relo kit
Save when you bundle!
This is a package deal where you save $100 when you purchase Shackle Hangers and Shock Relocation.
Shackle Hanger Info:
The flimsy stock hangers on 2005+ Tacomas don’t allow the leaf springs to perform like they should. Causing a shuttering rear end, pre-mature wear and tear and sometimes even bending altogether. Pairing these with aftermarket leaf springs that yield more travel will unlock the handling characteristics that you’re looking for not only with improved geometry but by stiffening the hanger to prevent deflection. Allowing the leaf springs to perform like they should. The shackle pivot is moved back allowing the leaf springs to cycle through the wheel travel cleanly with improved geometry.
DRT hanger specs:
1/4” and 3/16 steel
100% mig welded to the highest standards
Durable satin black powder coat finish
Stainless steel logo plates
Grade 8 hardware
Boxed design shackle using 3/16 steel
Grease-able polyurethane bushings
Aligns with leaf springs
2” x .250 machined DOM pivot tube
These have not been tested with SUA leaf springs and ride height may be affected.
Current lead time 2-3 weeks
Please note that Allpro leaf springs require an 1/8 spacer. Please email us if you have Allpro leaf springs.
For those who want even more improvements we offer a crossbar. The crossbar increases frame and hanger rigidity by attaching to the hangers and a factory crossmember on the frame. This greatly reduces the frame flex Tacomas are known for. Stiffening the frame and hangers also improves the suspensions performance and provides peace of mind on those hard landings directly to the hangers while off-roading.
Made from 3/16 steel and 1.5" .120 tube and is tucked up high into the frame.
Provides a mounting point for a Baja designs rock light.
Powder coated satin black.
Crossbars can not be used with a spare tire.
Shock Relocation info:
Introducing our Tacoma Shock Relocation Kit, designed specifically for 2005-2023 Tacoma models to be used with 2.5 x 12-14" shocks. This kit is the ultimate solution for off-road enthusiasts looking to maximize their vehicle's performance.
Our Rear Shock Relocation Kit is engineered to increase down travel while maintaining and often improving up travel numbers. Crafted with durability and functionality in mind, our kit features 1/4" lower shock mounts, limit strap mounting tabs, and all the necessary hardware for a seamless installation. The towers come powder-coated satin black and provides excellent protection against rust and corrosion.
All Shock Relocation kits ship free, this means that you can have our Rear Shock Relocation Kit delivered right to your doorstep without any additional costs.
Thorough instructions are included to ensure your suspension is properly installed. Because this is a universal kit designed to fit a number of different leaf packs and shocks the suspension must be cycled to maximize performance and prevent damage to your shocks or truck.
• Capable of over 13” travel with a 12” shock (leaf pack dependent)
• 3/16" Tower Powder coated satin black
• 1/4” lower shock mounts
• Limit strap tabs with frame overlays
• Free shipping
• 1.5” wheel spacers required for 2.5” smoothies on a 0 offset wheel
• 2” spacers required with a 2.5” triple bypass on a 0 offset wheel.
Shock notes: When ordering smooth body shocks you want a STRAIGHT fitting coming off the top cap.
*Compression adjusters recommended, resi mounting is easier*
When ordering bypasses you want a remote resi with forward tube layout. Piggy back resis will not fit.
King 2.5” x 12” no compression adjuster
King 2.5 x 12” w/ compression adjuster
