Products

DRT Fabrication
$265.00

Tacoma Cab Mount Relocation

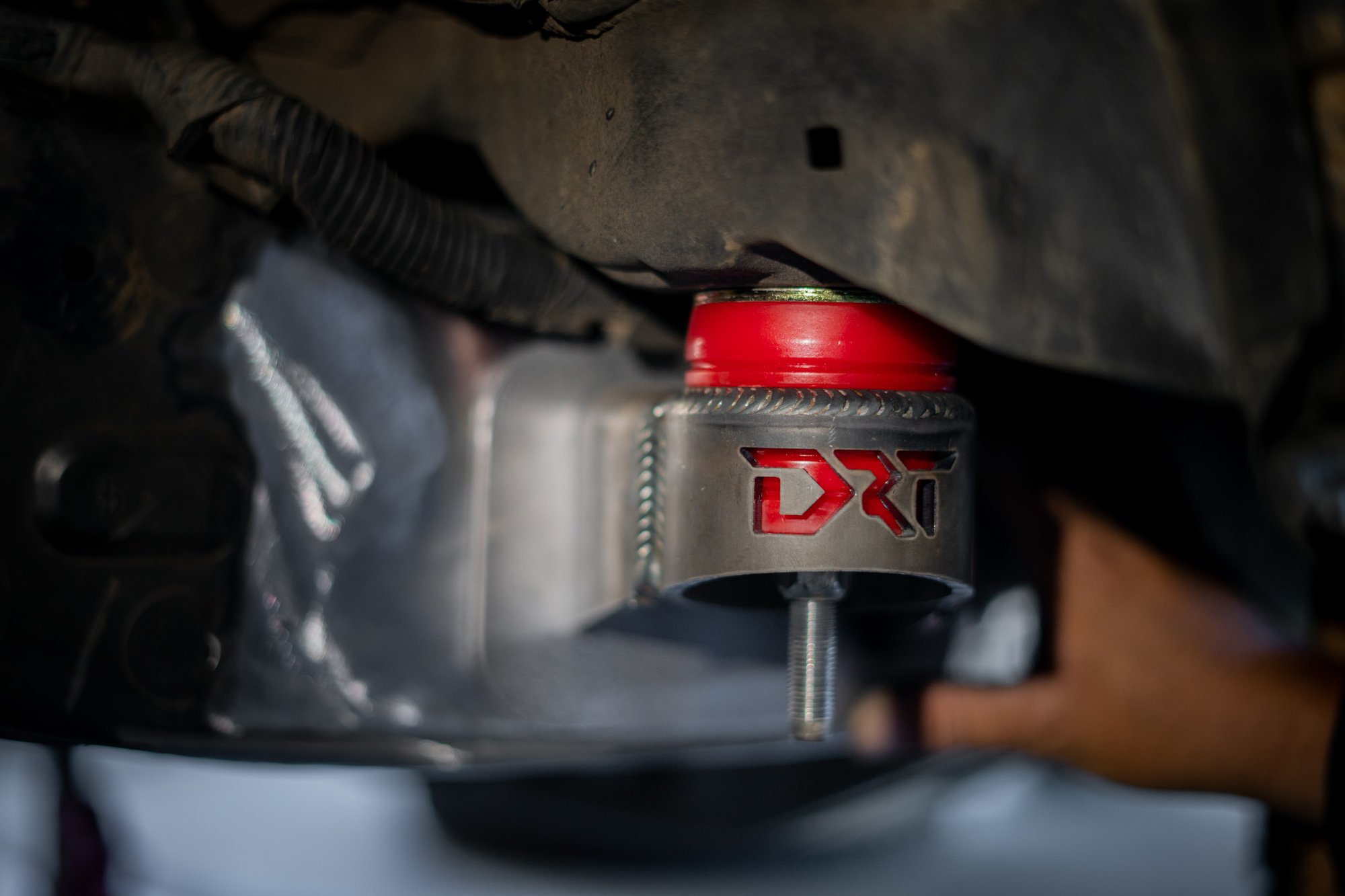

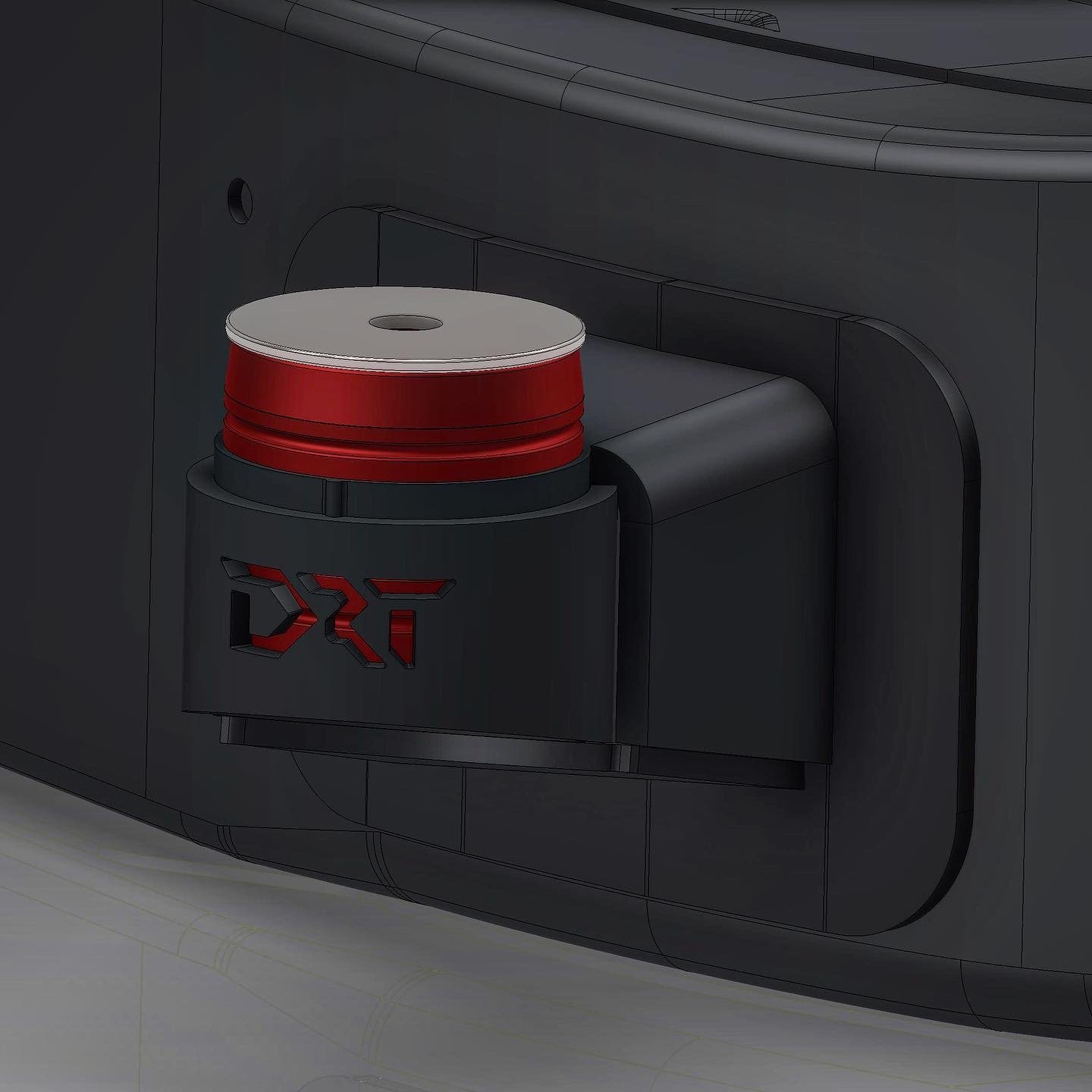

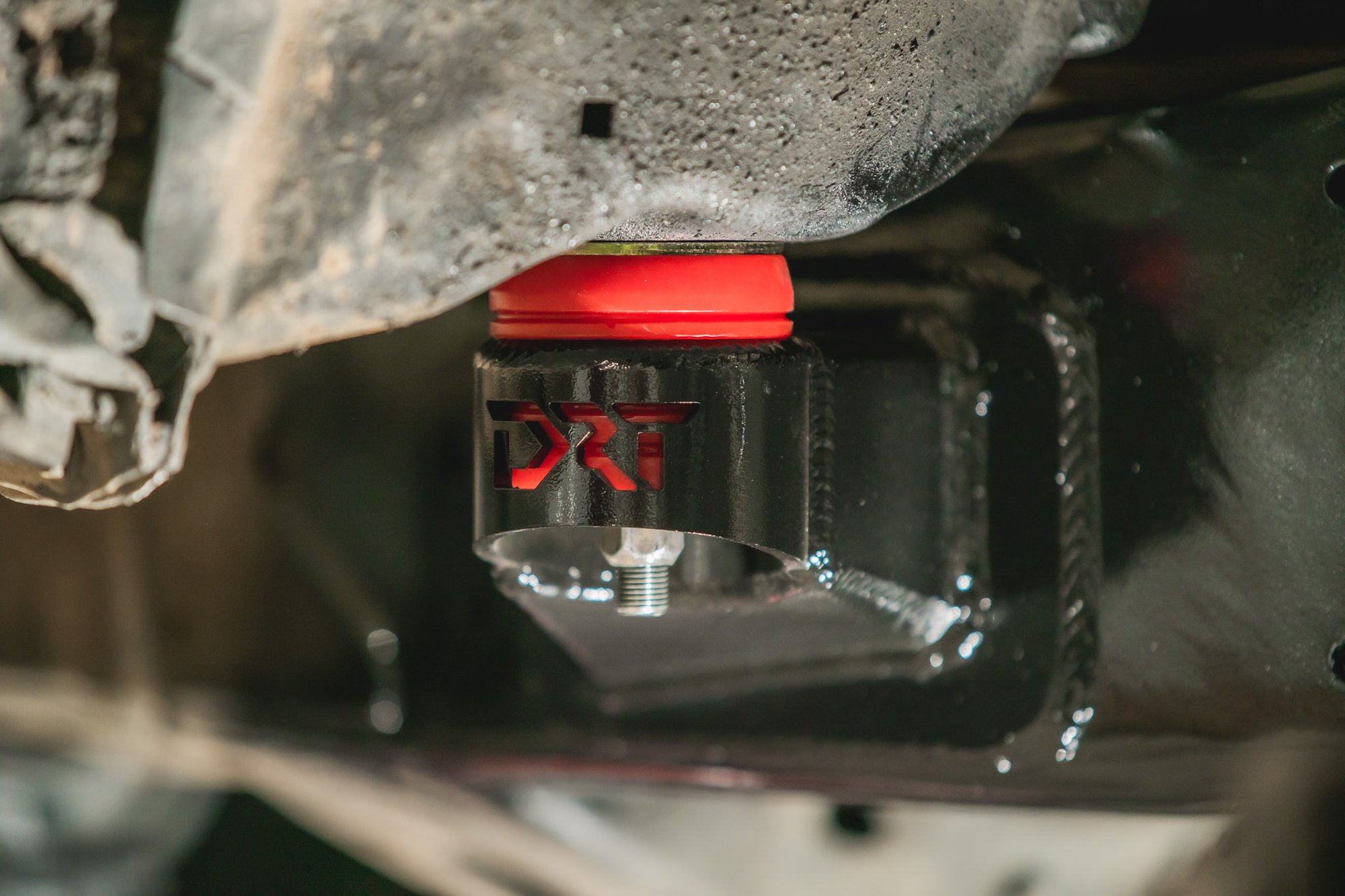

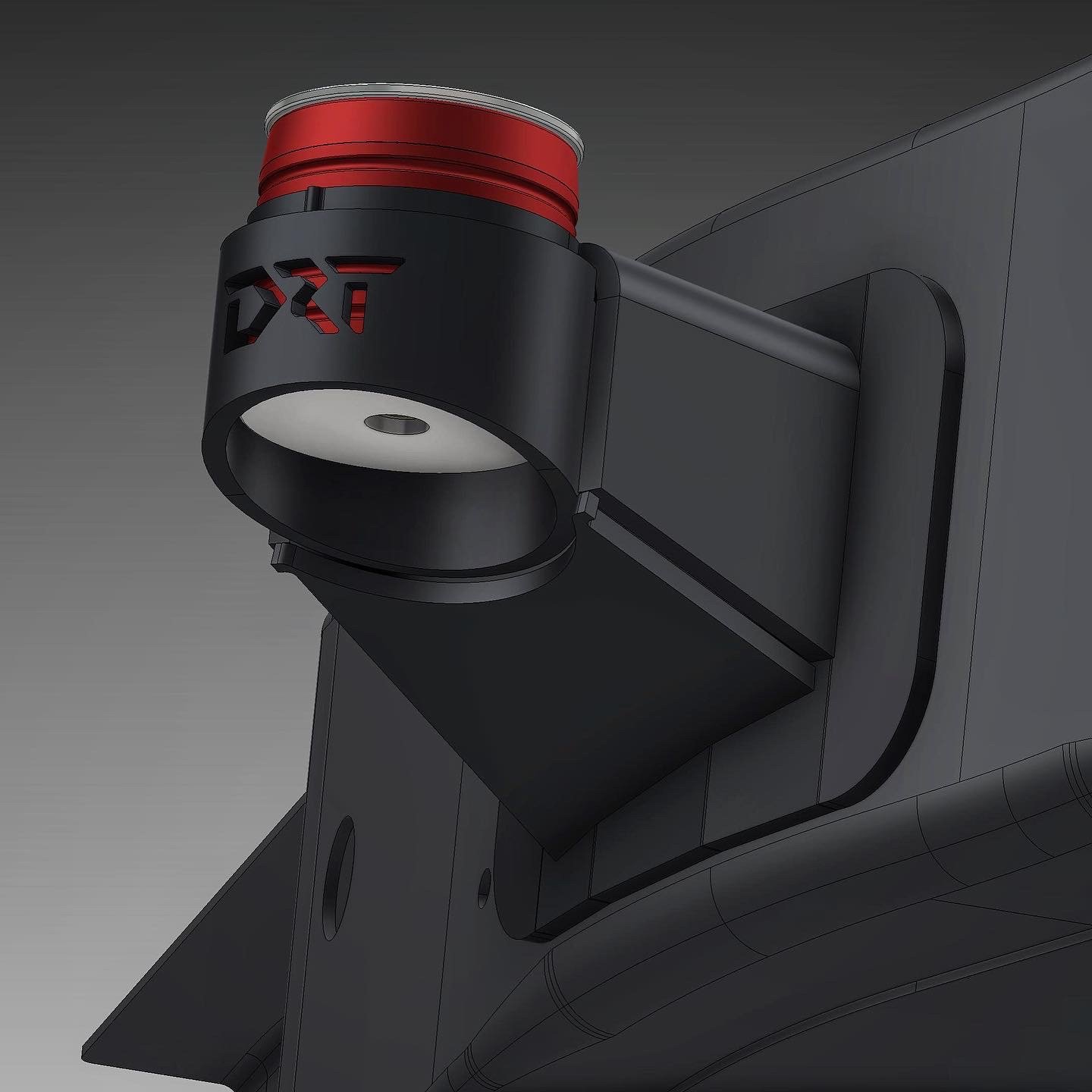

The factory 2nd & 3rd gen Tacoma's body mounts don’t allow for 35” tires to fit with out rubbing. Even with a cab mount “chop” we see people still having tire clearance issues. This relocation kit moves the body mount completely behind the firewall, allowing you to fit up to 35" tires without rubbing the body mounts. Other trimming and fitment clearance is required such as trimming the fender liner and flattening the pinch weld. Our Tacoma Cab mount relocation kit utilizes a 3/16 frame overlay plate to disperse the load and prevent stress cracks unlike other kits on the market. The cab mount itself is built from laser cut 3/16 and 1/4 plate as well as a laser cut .188 DOM tube that encases supplied energy suspension cab mount bushings.

The only fully boxed cab mount relocation kit available on the market also making it the strongest.

One kit includes :
Driver and passenger cab mounts
2 energy suspension cab mount bushings
Appropriate hardware

Please note that bushings may be red or black. You can enter your preferred bushing color but it is not a guarantee that will be the color bushings you receive depending on availability.

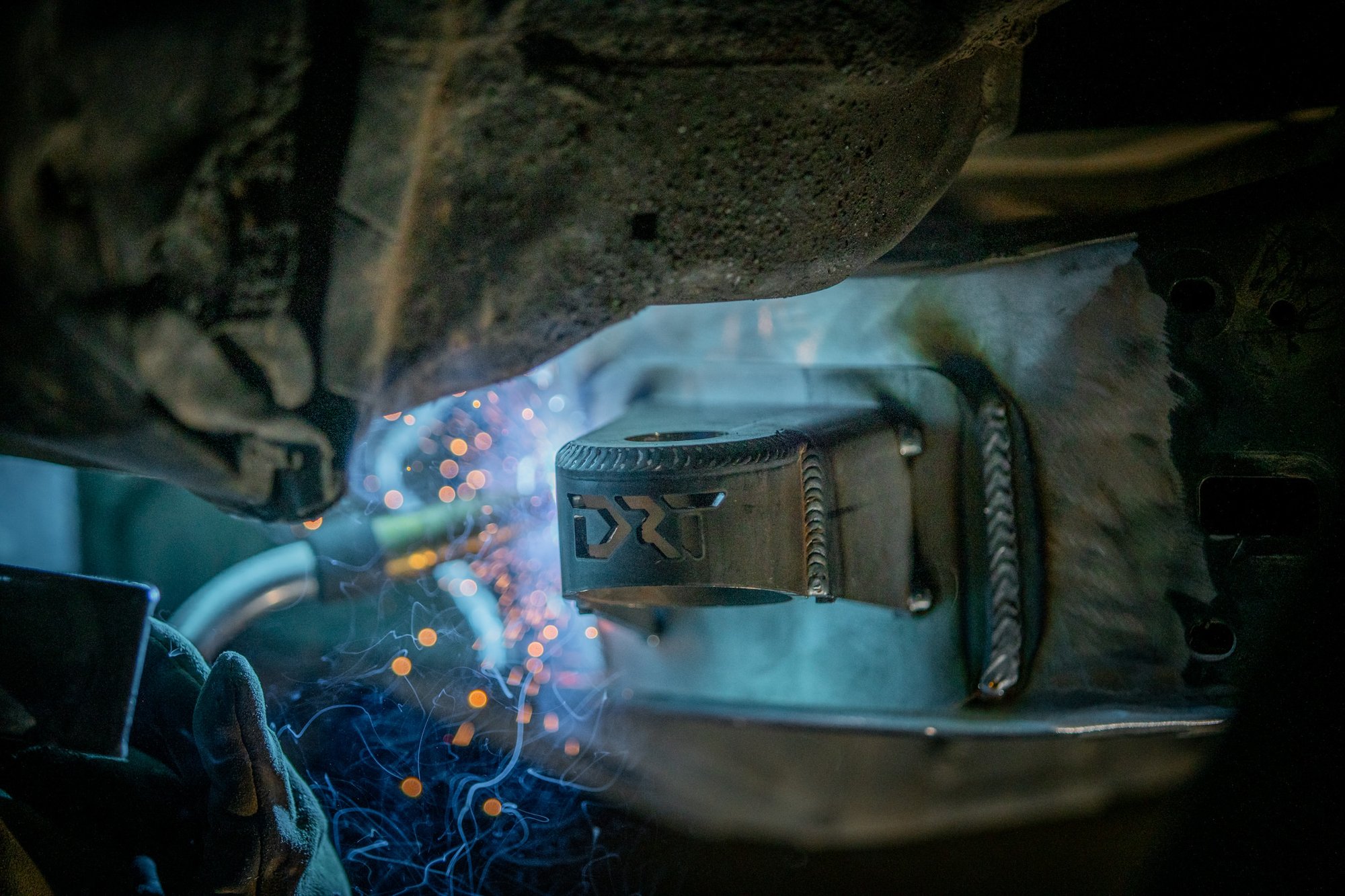

***DRT Fabrication highly recommends a professional shop does the installation. DRT Fabrication is not liable for any issues that may occur. This product is intended for off-road use only.

ONCE ORDER HAS BEEN PROCESSED THERE ARE NO RETURNS OR CANCELATIONS

Fits 2005- Current Tacomas

Estimated 1-2 week lead time
