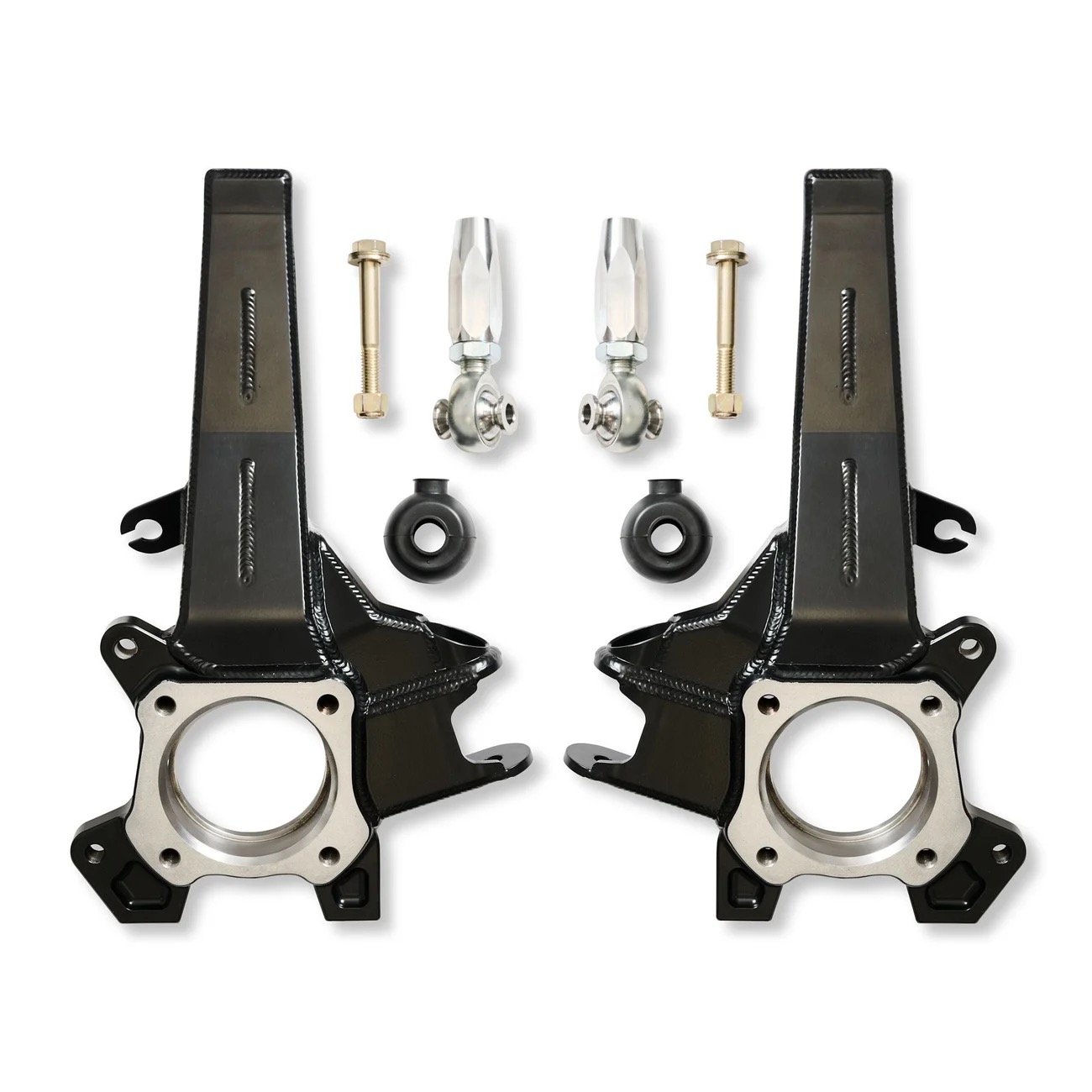

15-24 4Runner | 15-22 GX460 Fabricated Spindles

ALL NON TACOMA MODELS WILL NEED TO PURCHASE A TACOMA BOTTOM TAPER MISALIGNMENT FROM THE MFG OF YOUR UCA

Please contact info@drt-fabrication for any questions.

Use code : FEBSPINDLES for 20% off

PRE-ORDER OPENS FEBRUARY 1st

All of February spindles will be 20% off.

All of March spindles will be 15% off.

All of April spindles will be 10% off.

MSRP $2100

*Estimated* 12-15 week lead time from February 1st.

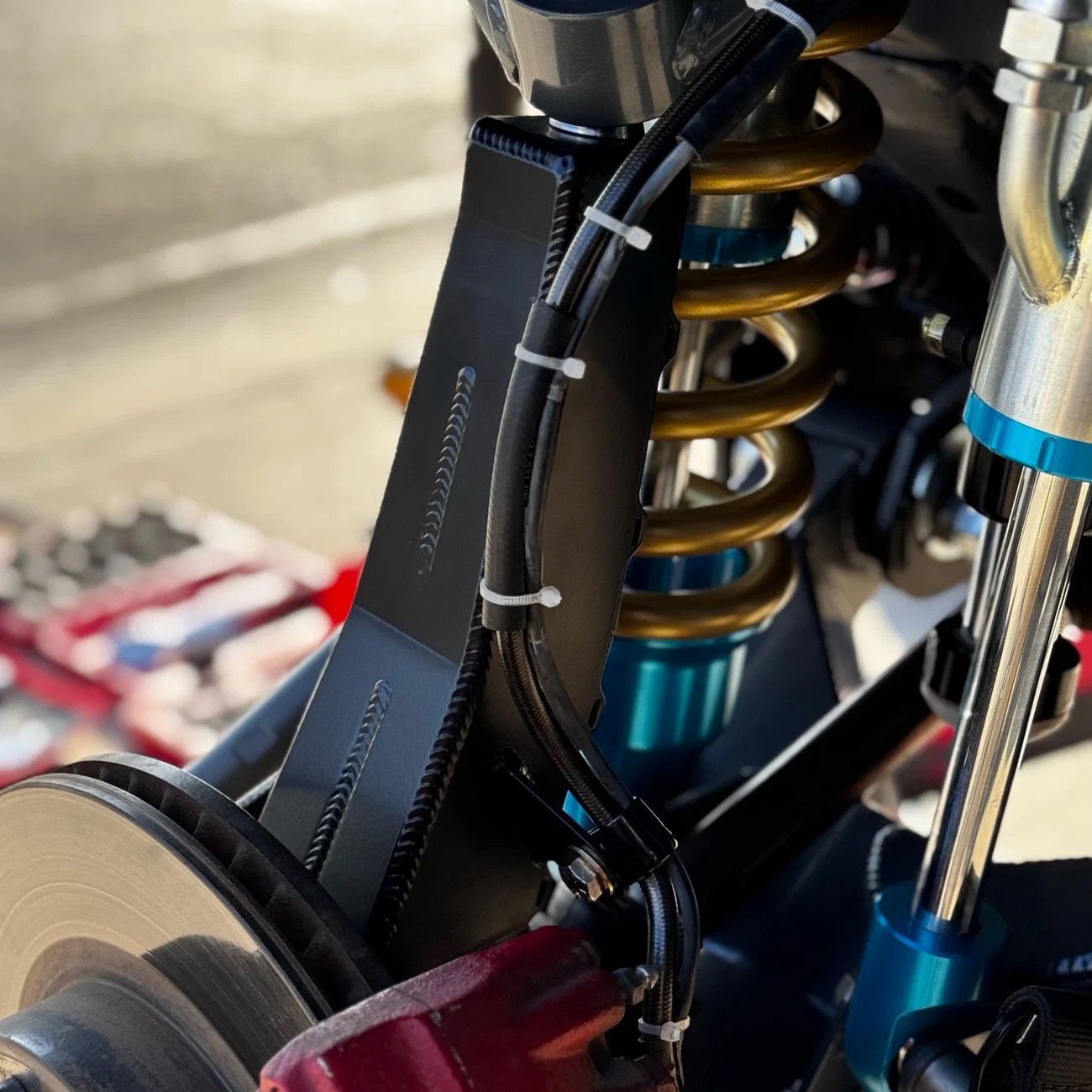

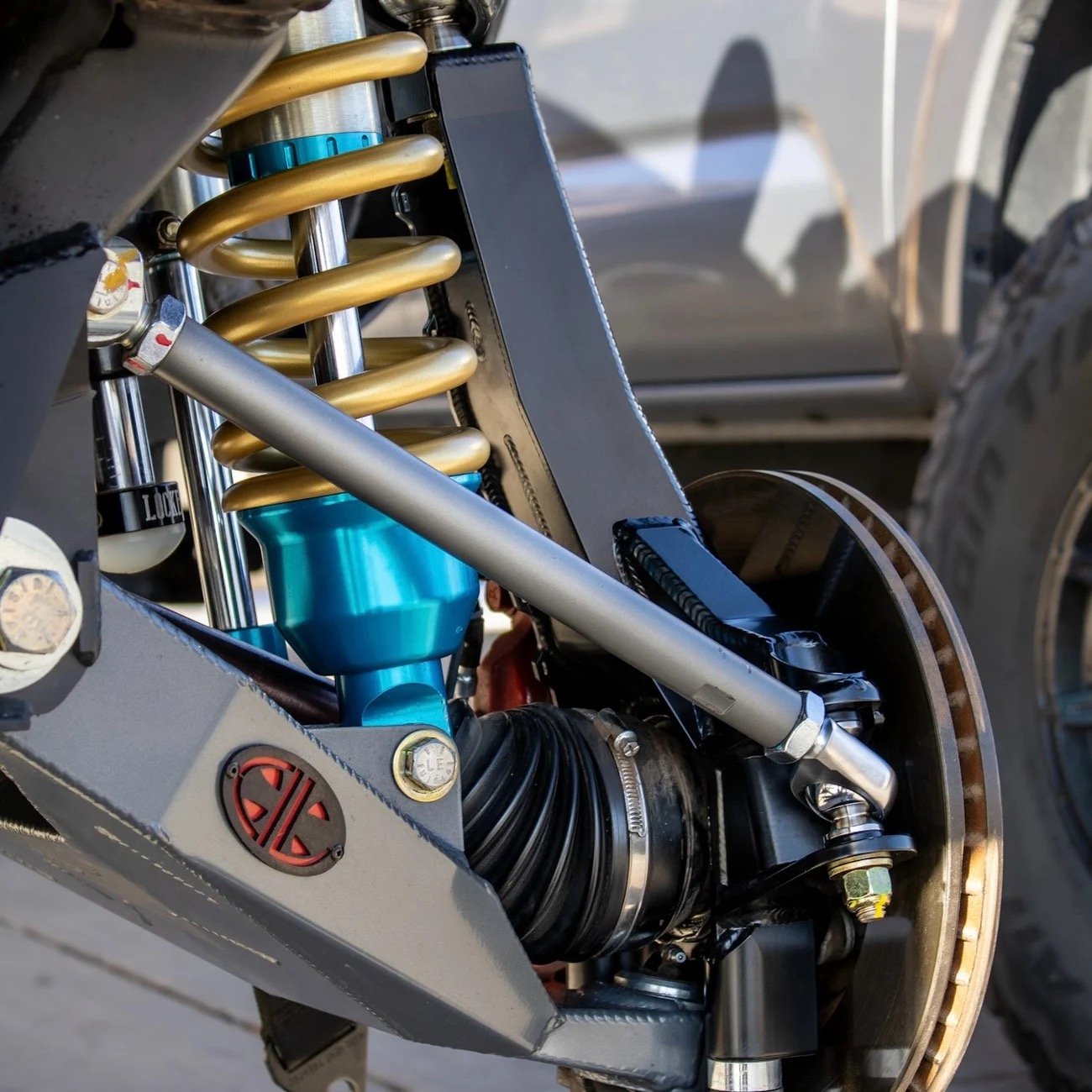

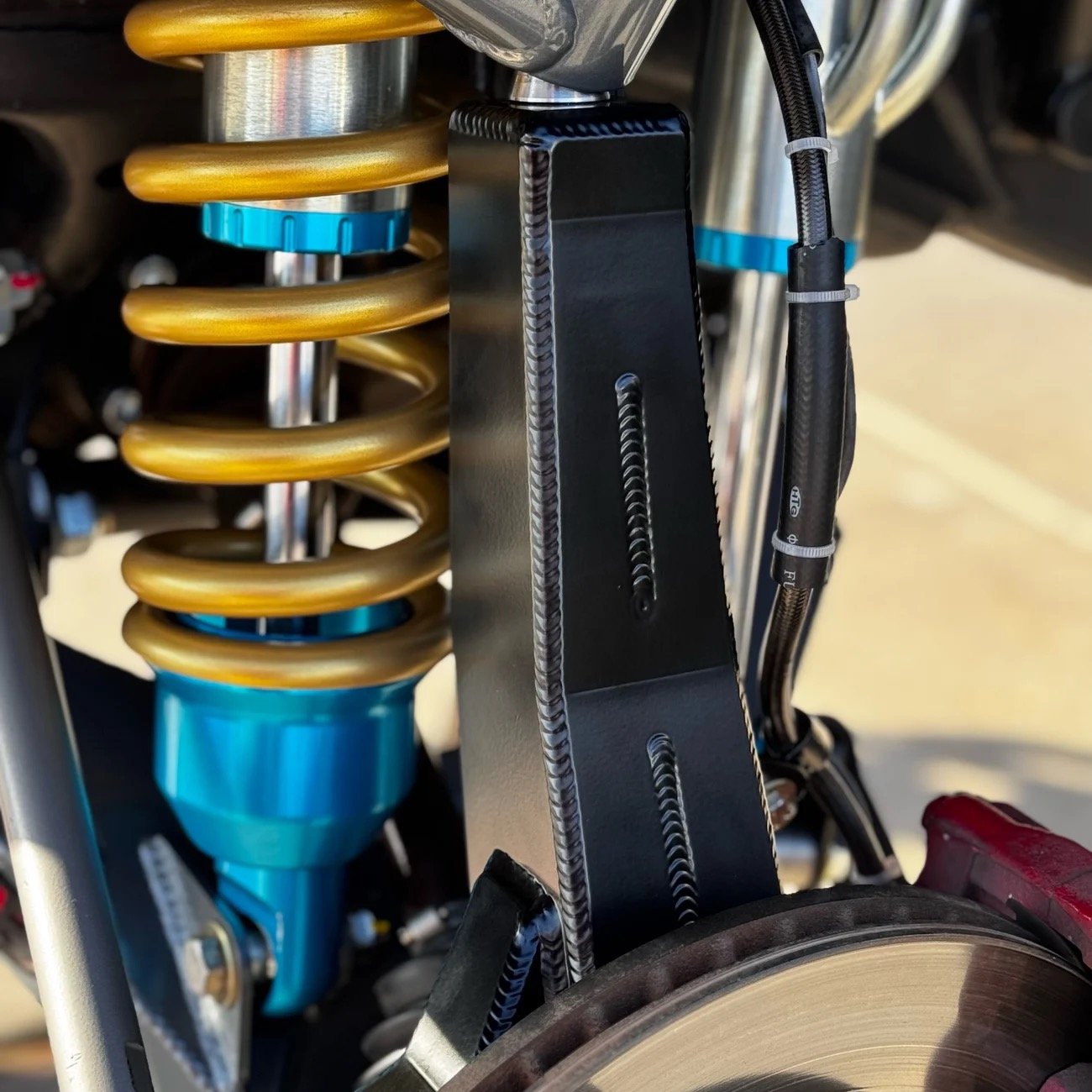

The bolt on long travel kits available today utilize the factory spindles, this leaves a weak link in your suspension system. The DRT Fabrication fabbed spindle is the missing link to a bullet proof suspension package.

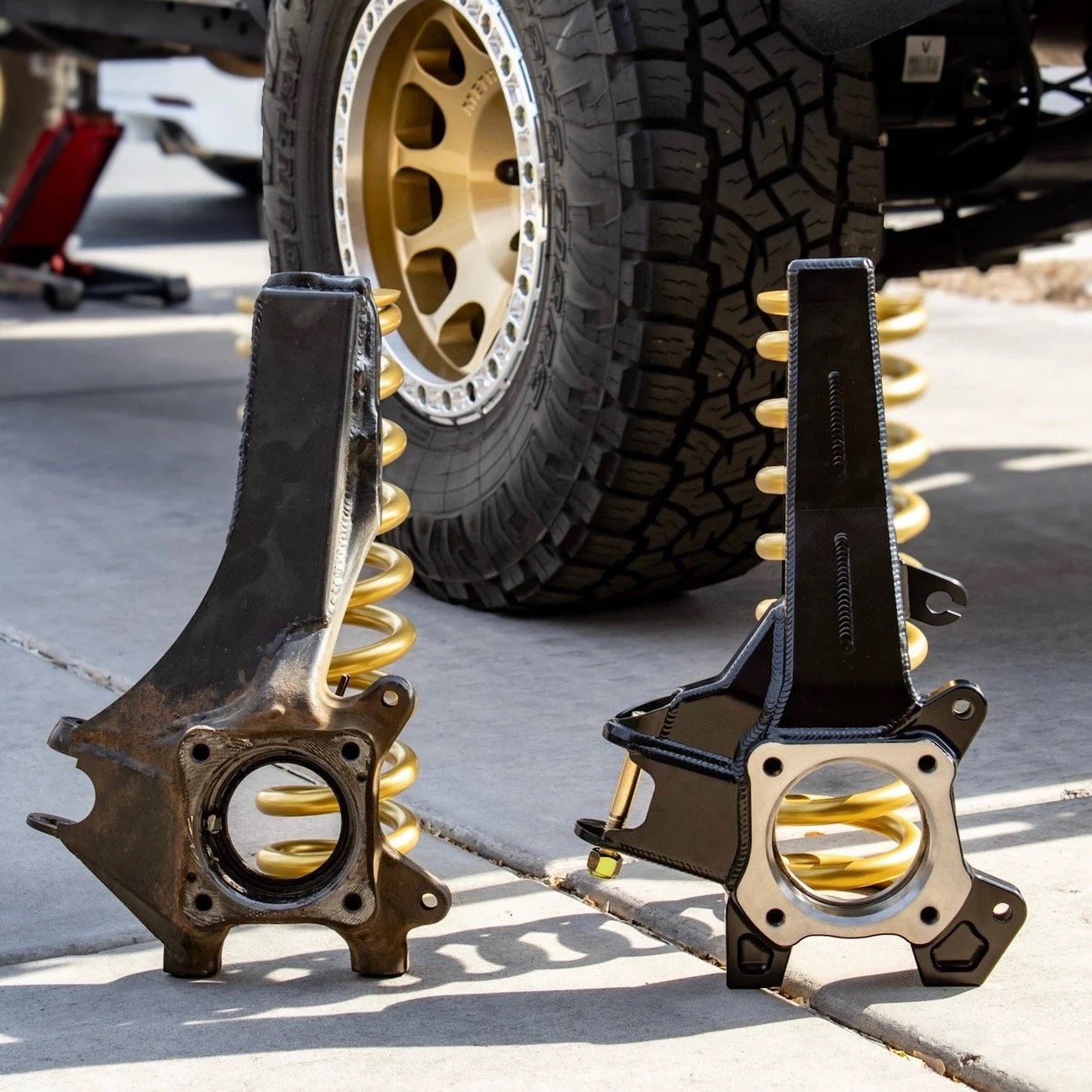

Our spindle is designed around a factory spindle with no geometry changes. This means it will work with any bolt on long travel kit that is intended to be used with the factory spindle for both 4 wheel drive & 2 wheel drive Tacoma's.

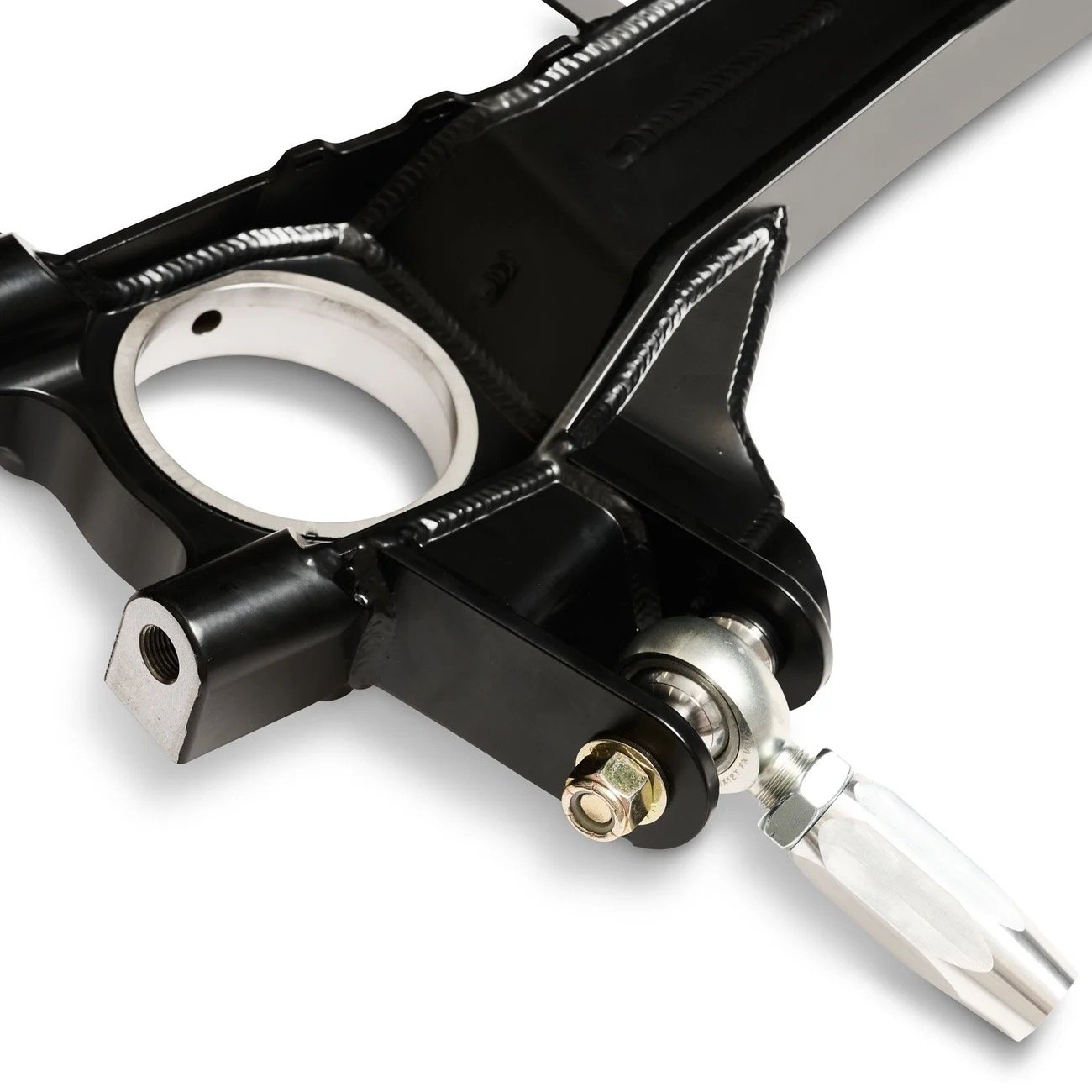

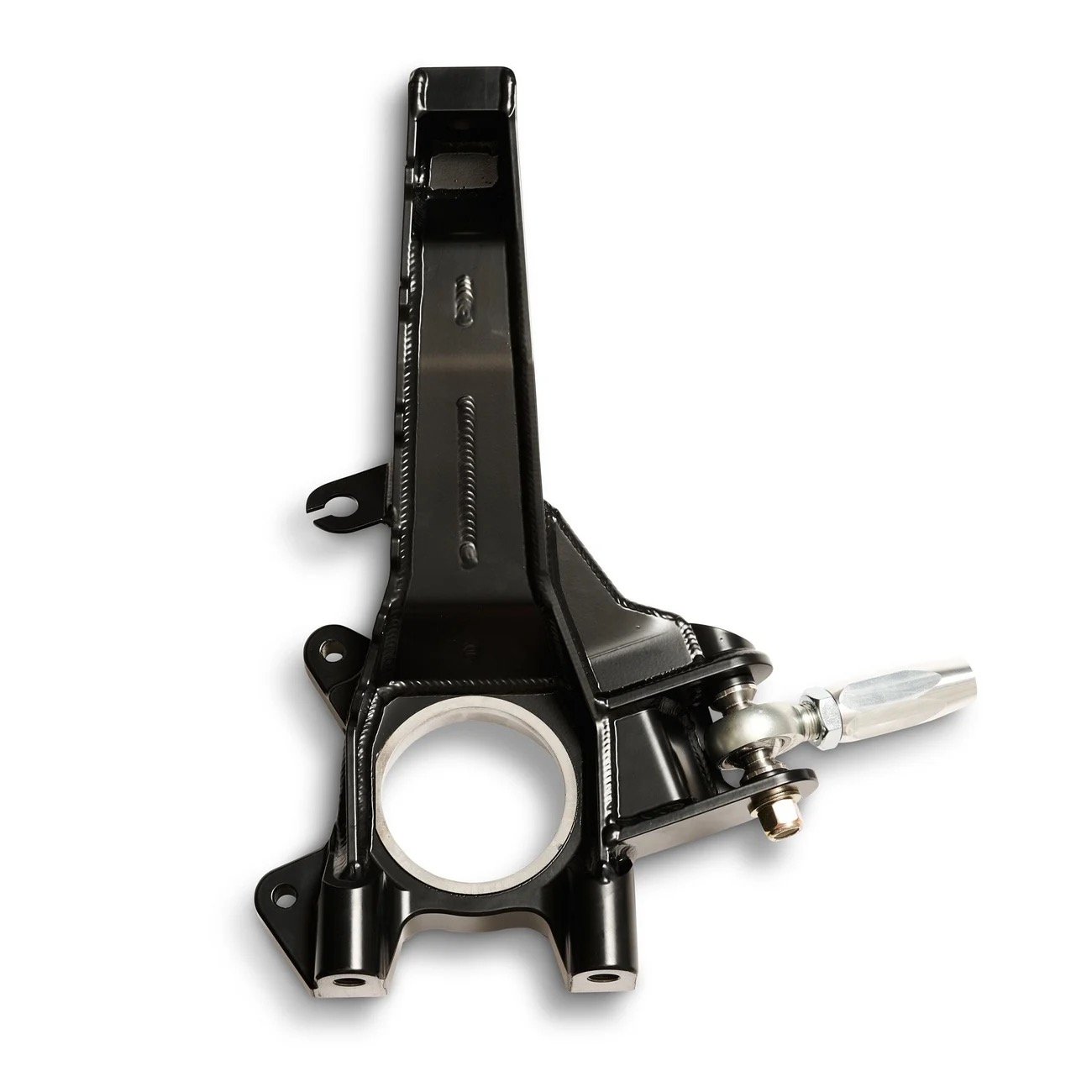

Constructed from a combination of 3/16" & 1/4" A36 steel plate with an internal gusset to provide superior strength over others on the market. The DRT fabbed spindle also comes standard with dual shear heim steering (outer only) with the heim center place in the correct location unlike the heim steering kits available for factory spindles. This ensures there is zero change in steering geometry.

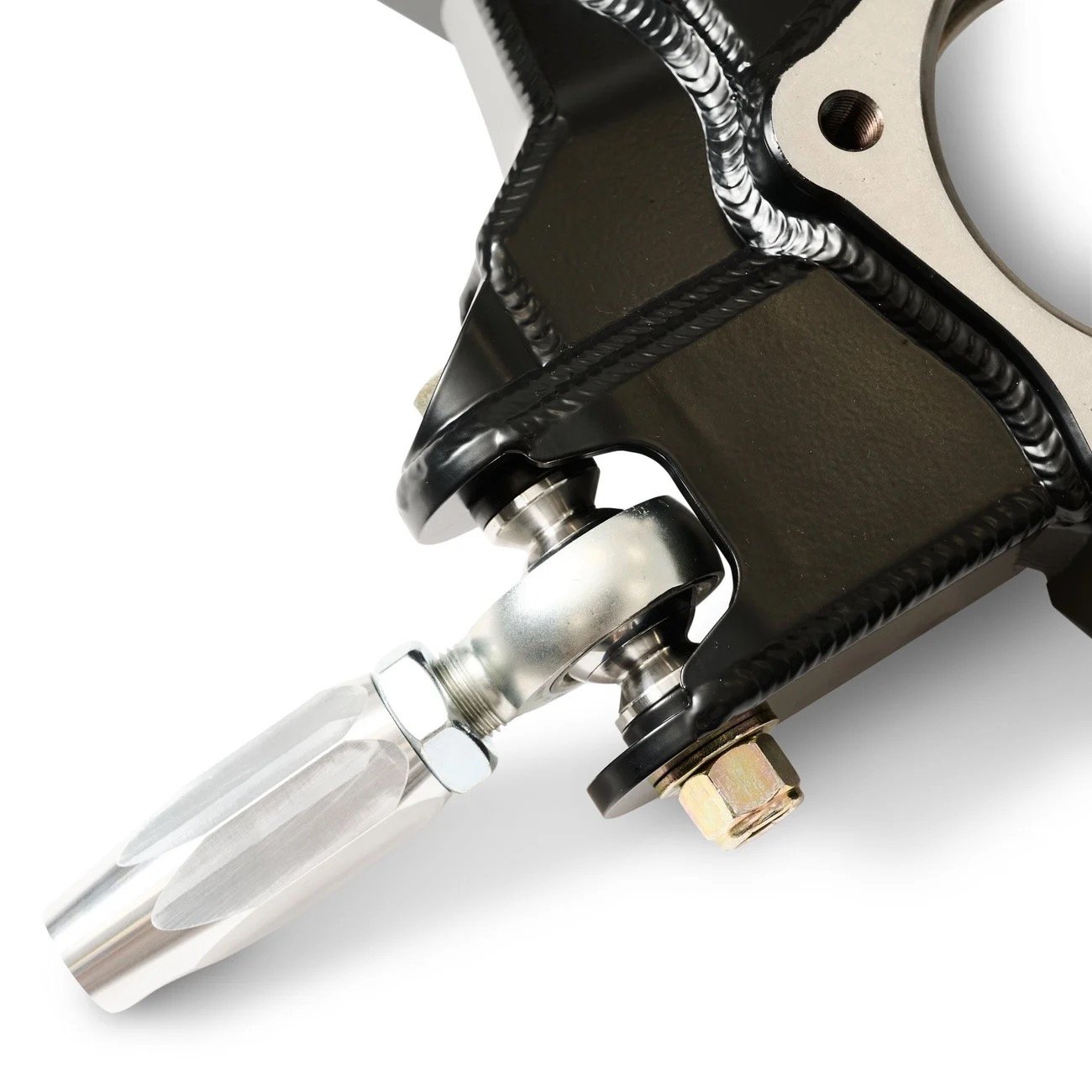

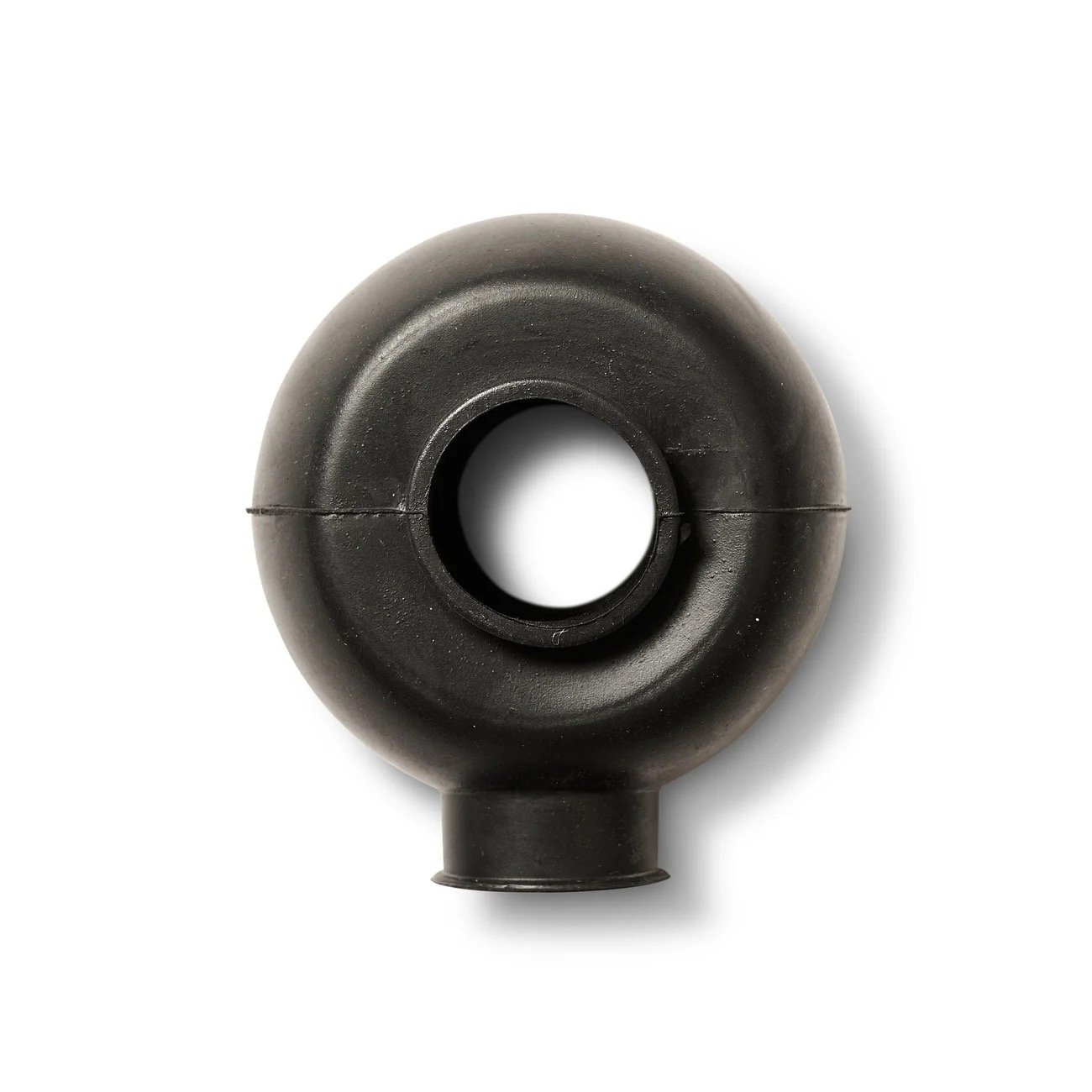

The included outer heim steering is designed around factory inner/outer tie rods so it will work with steering extenders. We use a 3/4" FK JMX12T heim with custom high angle misaligns and a rubber boot cover to keep the heim out of the elements.

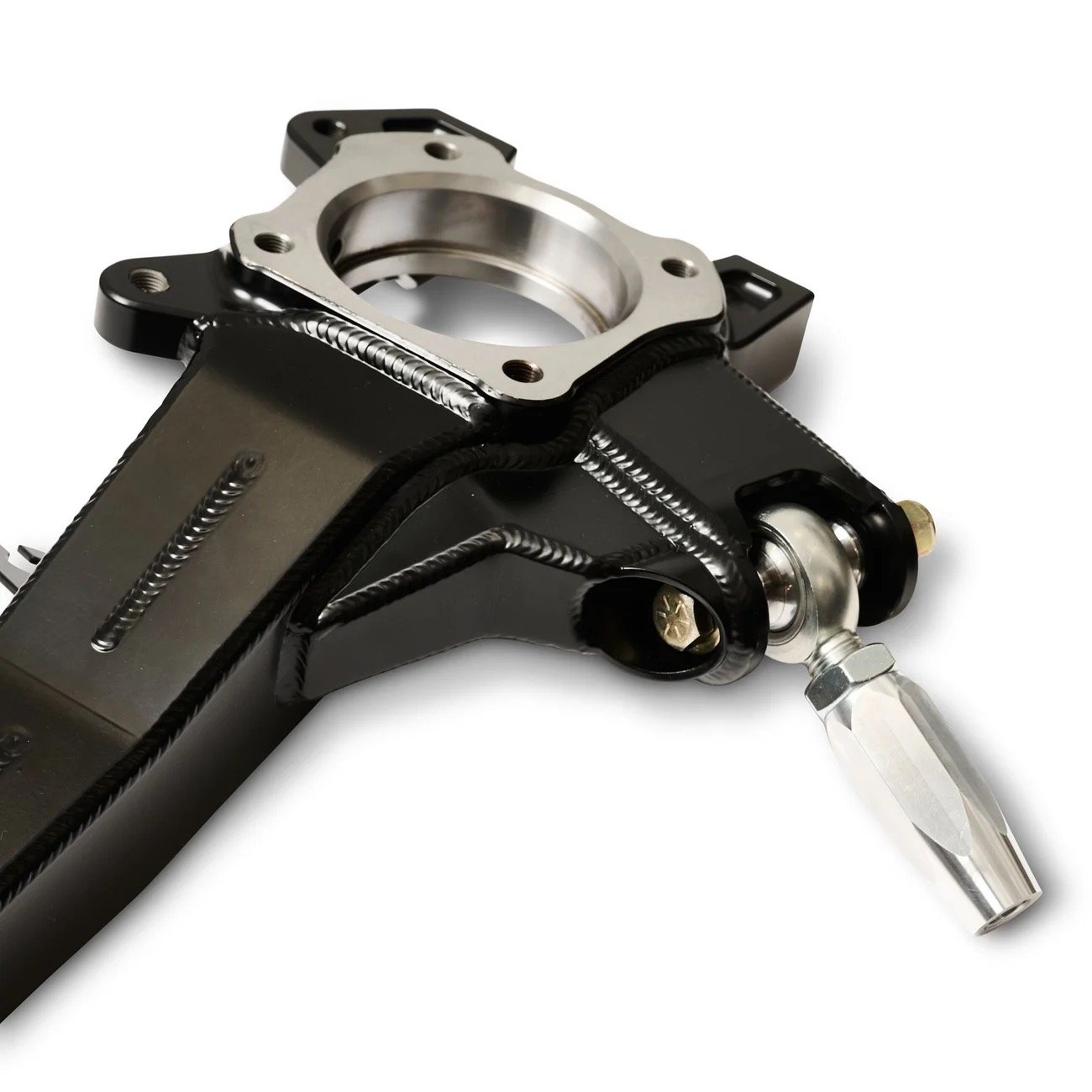

The hub block starts its life as a giant chunk of steel that is machined down into its perfect form with integrated caliper mounts. The ABS sensor is relocated behind the caliper bracket out of harms way. The entire hub block features an array of fillets to reduce stress risers

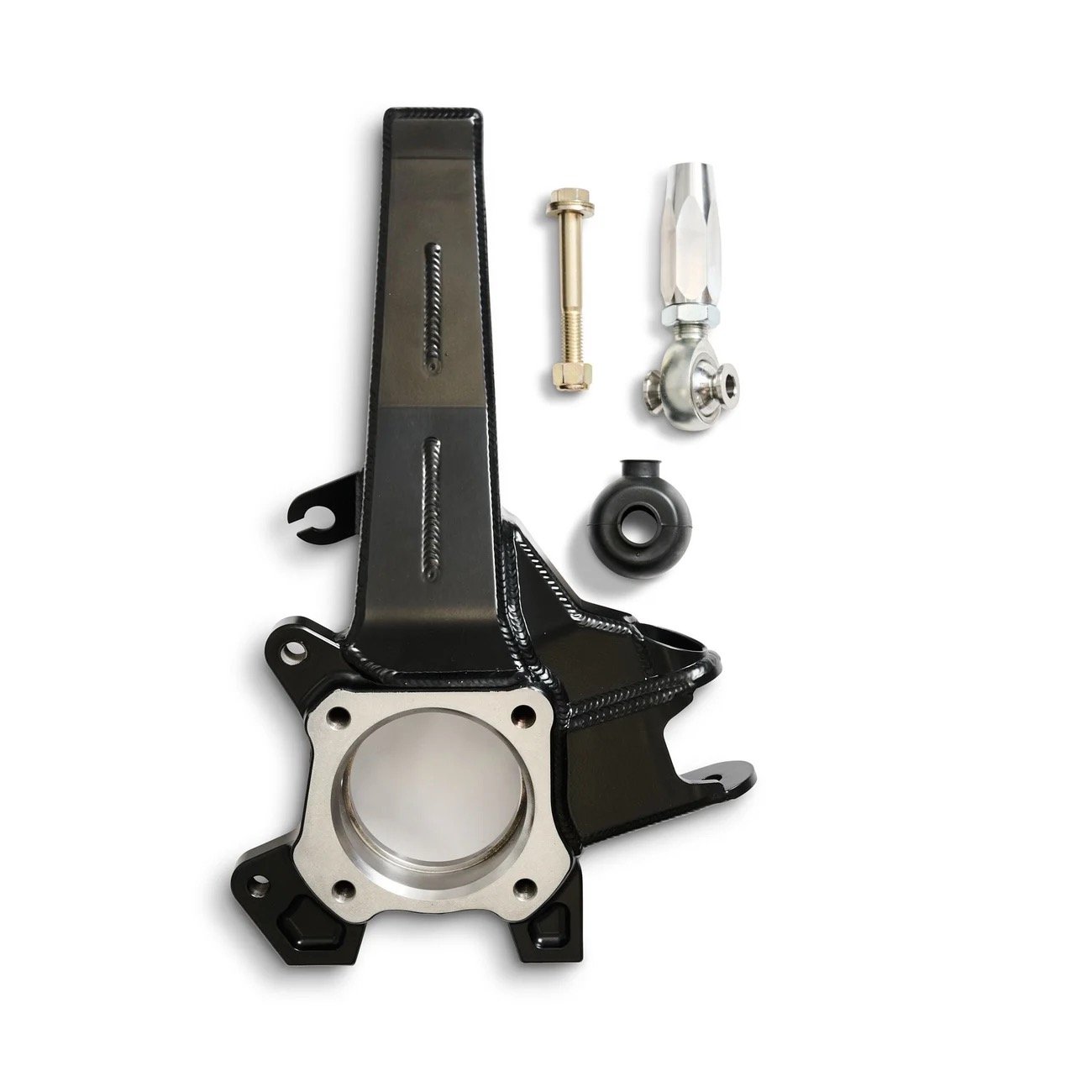

SPECS:

3/16 & 1/4 A36 plate with internal gusset

100% MIG welded

Includes double shear heim outer steering w/ boot cover

Relocated ABS sensor

Billet Hub block, tie rod and UCA mount

Powder coated satin black

REQUIREMENTS:

Sway bars are not compatible

Min. 16" wheel

Min 4.5" backspacing

Works with factory & aftermarket LCA

Works with bolt on LT kits, works with heim steering kits that use a JMX12T heim. Must use our HAM(high angle misaligns)

Works with factory & aftermarket LCA. Fits Mid travel and Long travel applications using a factory spindle.

ALL NON TACOMA MODELS WILL NEED TO PURCHASE A TACOMA BOTTOM TAPER MISALIGNMENT FROM THE MFG OF YOUR UCA

Please contact info@drt-fabrication for any questions.

If you have a SOS Performance BBK you will need a special adapter. Please reach out to SOS Performance for this adapter

If you have a PowerBrake BBK you will need a special adapter. Please reach out to PowerBrake for this adapter.

THIS PRODUCT IS INTENDED FOR OFF-ROAD USE ONLY

SHIPPING

Flat rate shipping is applied to the lower 48 states only. If you live outside of the lower 48 you will be invoiced for the shipping difference prior to your order shipping.
